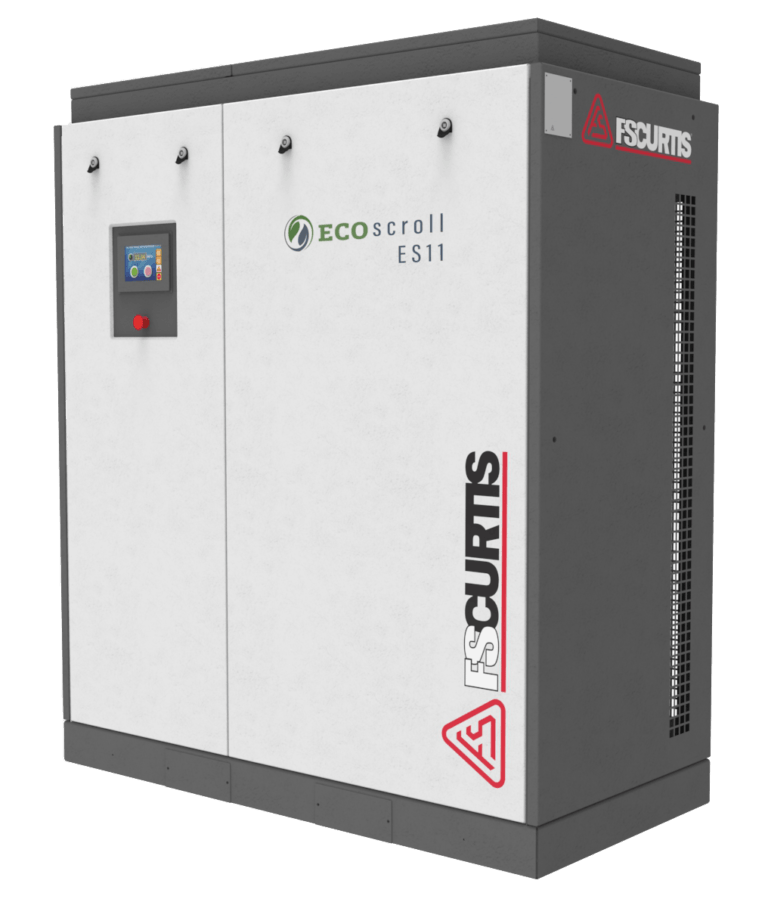

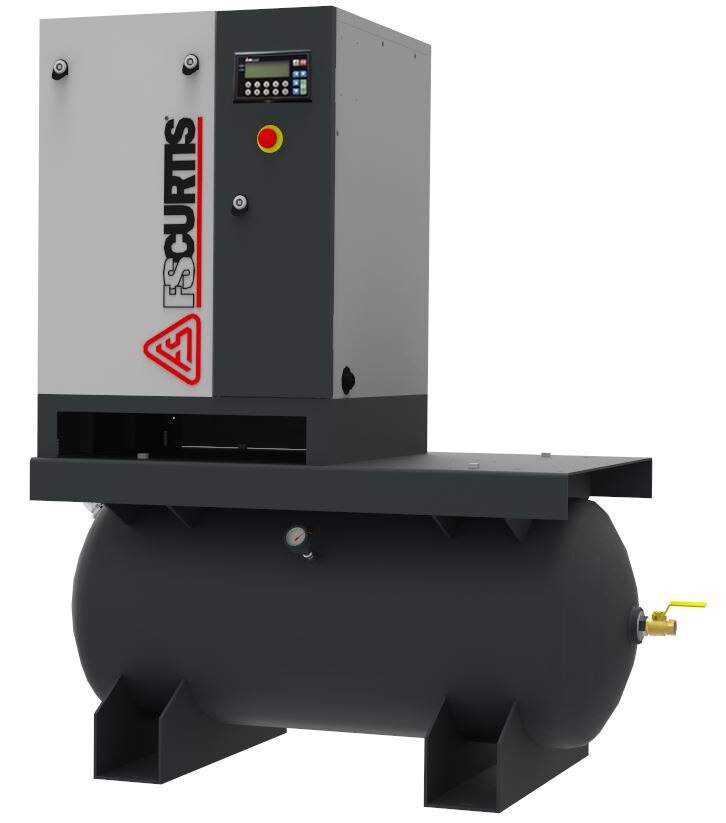

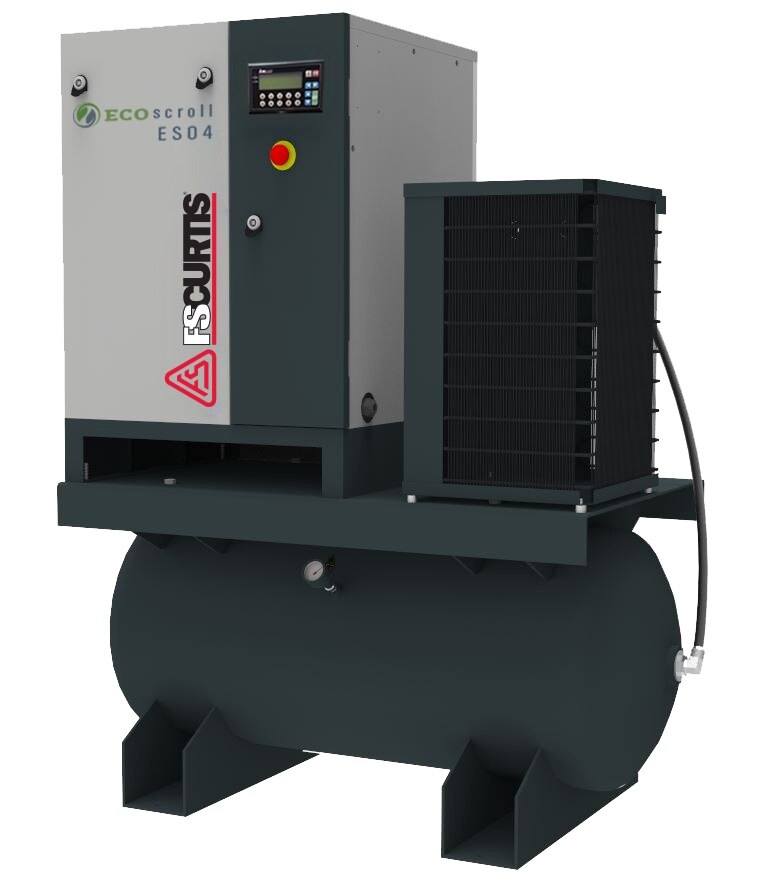

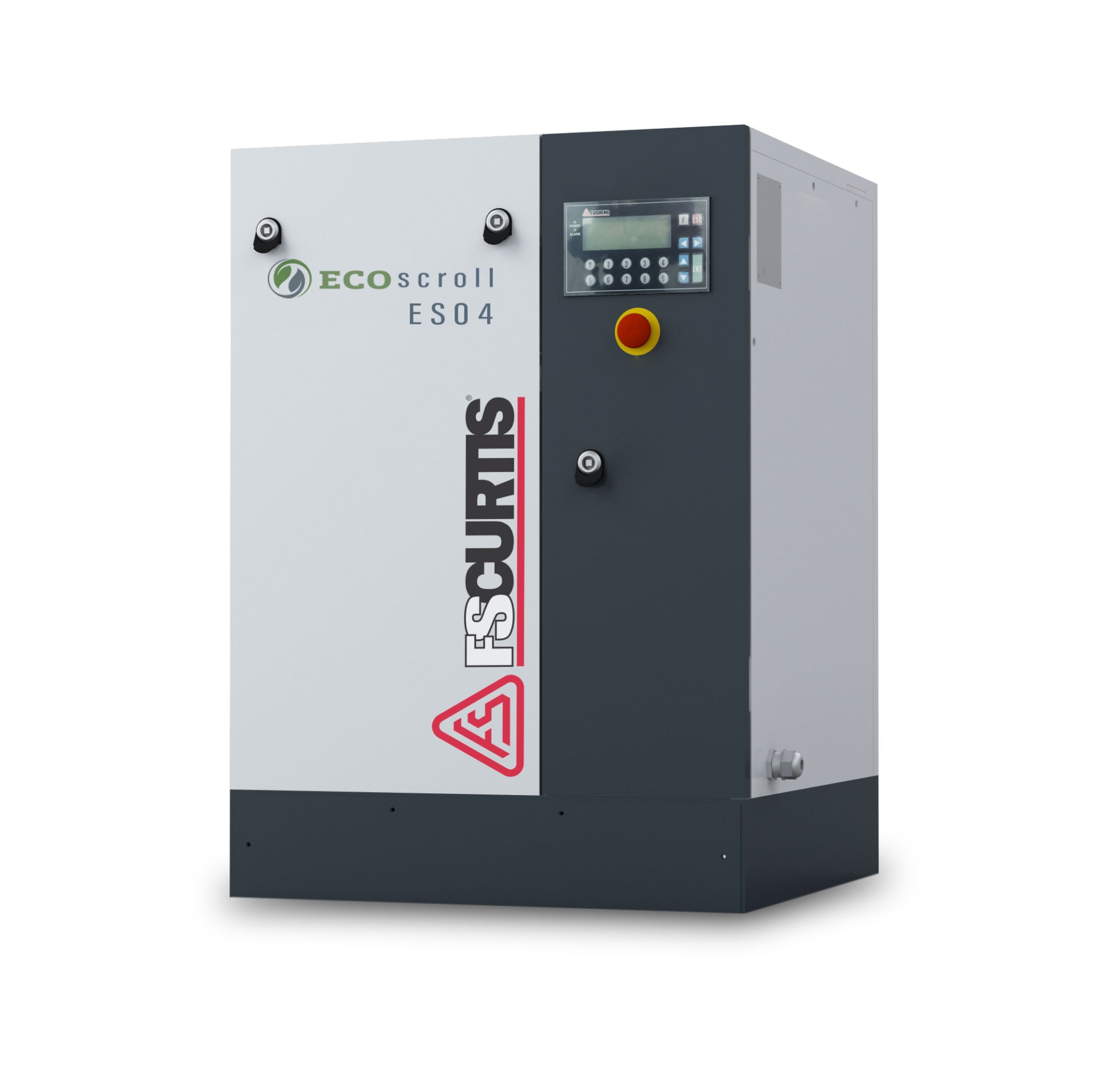

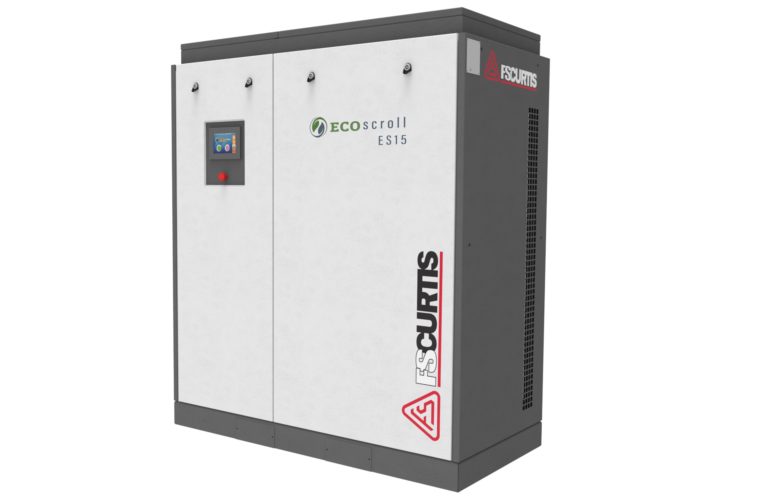

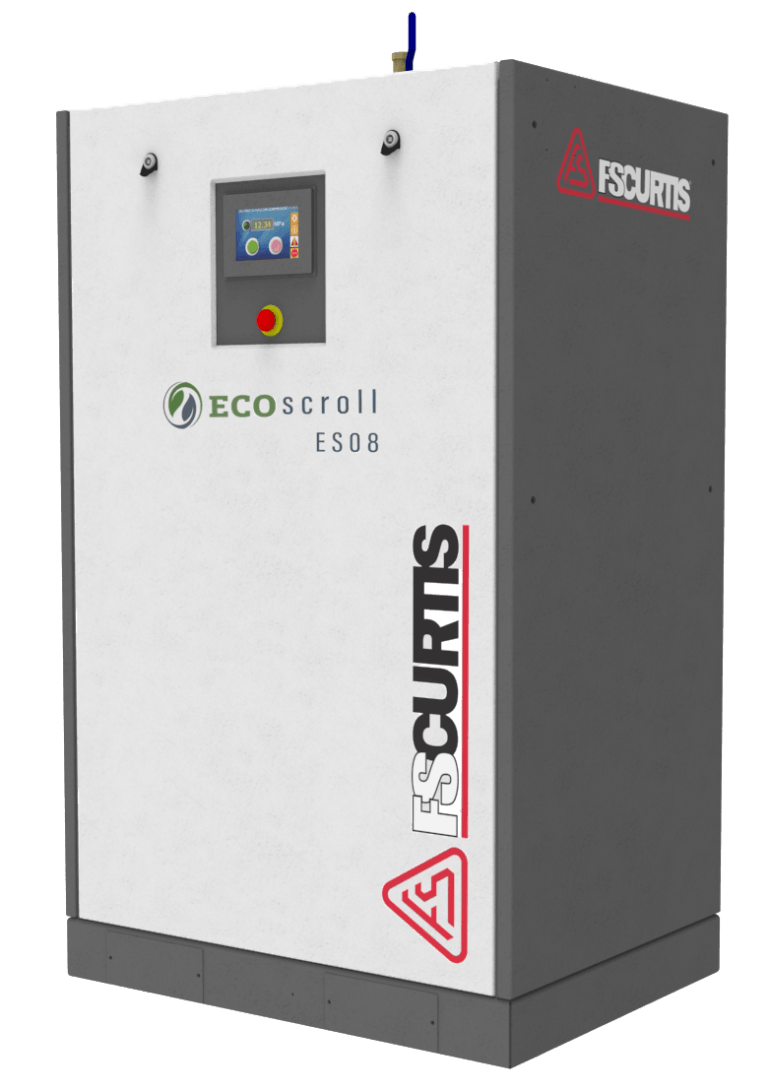

ECO Scroll Oil-Free Scroll Air Compressors (4 – 15 kW)

The FS Curtis ECO Scroll Series comprises ISO 8573-1 Class 0 certified oil-free scroll air compressors engineered for ultra-clean air applications requiring absolute contamination control, low noise, and continuous duty reliability. Available in the 4 – 15 kW range, the ECO Scroll platform utilizes advanced fixed and orbiting scroll compression technology delivering near-zero vibration and high volumetric efficiency.

The oil-free scroll airend consists of precision-machined fixed and orbital scroll elements that compress air through progressive volume reduction without metal-to-metal contact, eliminating lubrication requirements inside the compression chamber. This design ensures 100% oil-free air output suitable for sensitive processes.

High-efficiency TEFC IE3 motors drive the scroll elements with start/stop control logic enabling energy optimization under intermittent loads. Centrifugal cooling fans and optimized airflow paths maintain thermal stability and low discharge temperatures.

Integrated check valves, safety relief valves, and multi-level protection systems safeguard the airend from reverse pressure and overload conditions. The compressors operate at ultra-low sound levels ranging from 57 – 63 dBA, making them suitable for indoor installations.

The system includes a smart user-friendly controller with maintenance alerts, alarm protection, real-time pressure and temperature monitoring, and operational diagnostics.

With 100% duty cycle capability, compact footprint, and modular design, ECO Scroll compressors are ideal for electronics, pharmaceuticals, hospitals, dental clinics, food & beverage, printing, laboratories, and cleanroom environments.
