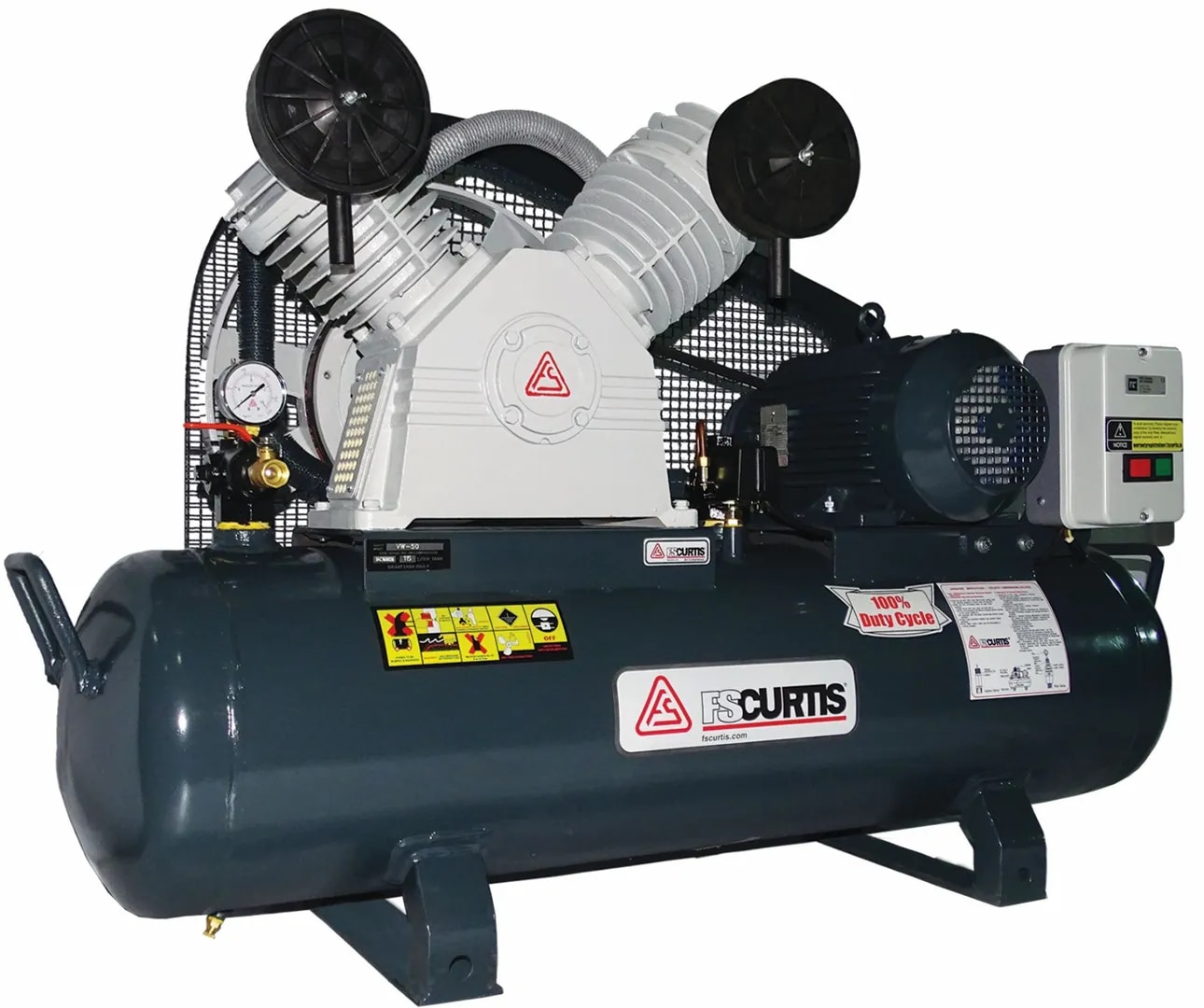

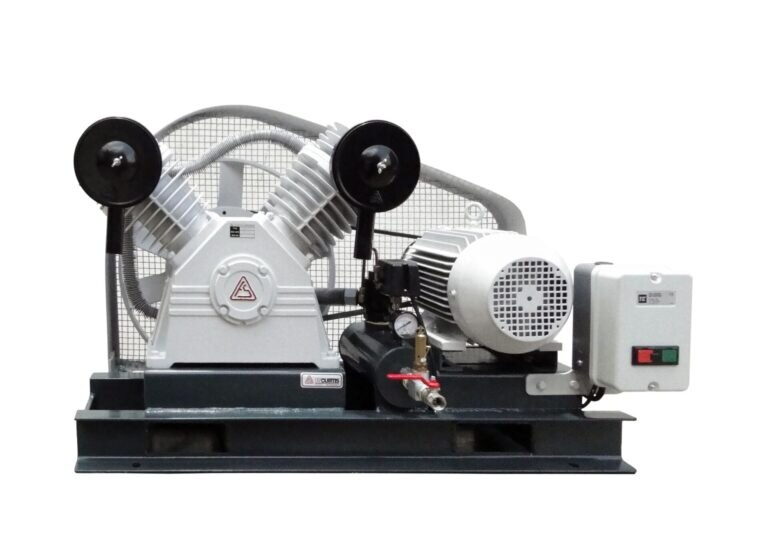

W Series Oil-Free Reciprocating Air Compressors (3–20 HP)

The FS Curtis W Series Oil-Free Reciprocating Air Compressors are engineered for applications requiring 100% contamination-free compressed air. Available in the 3–20 HP range, these piston compressors feature a dry crankcase design that completely eliminates oil carryover risk into the compression chamber, making them suitable for critical processes.

The compressors utilize air-cooled, deep-finned cylinders providing 360° heat dissipation for low operating temperatures and enhanced thermal stability. Multi-stage compression (in higher HP models) with inter-stage copper cooling tubes further improves volumetric efficiency while reducing discharge temperature and power consumption.

Low rotational speed pump operation minimizes wear, leakage, and vibration, ensuring extended service life. High-precision grease-lubricated bearings with high-temperature resistance support continuous duty performance.

Self-lubricated compression rings and guide rings offer superior sealing efficiency and high temperature resistance. Stainless steel coated intake valves resist corrosion and ensure long valve life under continuous 100% duty cycle operation.

Die-cast aluminium alloy connecting rods provide high strength with reduced reciprocating mass, while precision-machined pistons with self-lubricating surface coatings enhance durability. Crankcase ventilation systems reduce internal heat buildup, extending bearing life and operational reliability.

These compressors are widely deployed in medical air systems, electronics manufacturing, food processing, pharmaceuticals, biochemical industries, petrochemicals, and precision painting applications where oil-free air quality is mandatory.

KK Techno Solutions supports sizing, installation and service from Noida across North India, subject to project feasibility. Send the required pressure, air demand, duty cycle, air-quality requirement and site location for configuration selection and quotation.
